Product Overview

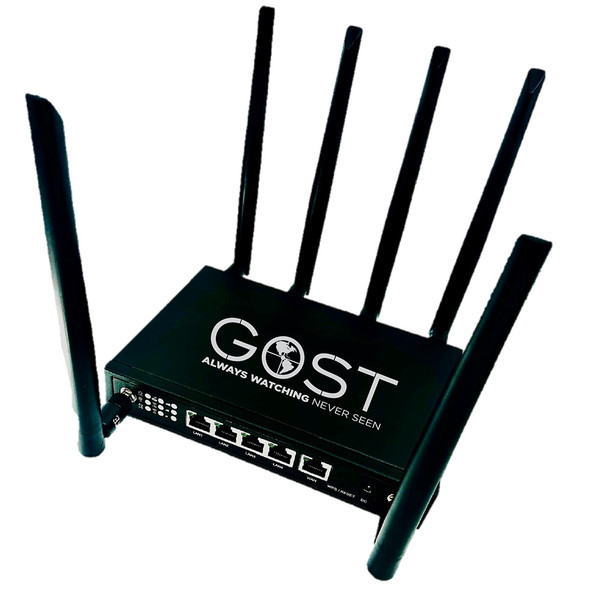

MAXLiNK 4G Multi-Carrier Communicator E-SIM Select Router

Experience the most reliable cellular data networks through multiple carrier access in North America and the Caribbean. On-demand, always searching, minimal signal loss for better performance and connectivity to your vessel's security and surveillance systems while utilizing four major cellular carriers on one device that automatically switches between providers for the best possible cellular data connection and throughput. Its automatic multicarrier failover capability with faster speeds provides overlapping coverage due to combined networks and has created the most expansive footprint available on the market. Simple, plug-and-play with no APN programming makes installation easy and can also be configured for international capabilities. MAXLiNK is a multi-functional wireless 4G LTE with Cat.7 & Cat.13 capabilities and Wi-Fi, providing LTE through MCS technology.

Hardware:

Mobile 4G/LTE (Cat 7 & Cat 13)
Main CPU RTL8197FH-VG5-CG
Memory 128MB
Buttons Reset, WPS
SIM Micro SIM Slot
Antennas 4 Wi-Fi External Antennas (2 x 2.4GHz; 2 x 5.8GHz); 2 External LTE Antenna
Ethernet Ports LAN - 4 x RJ45 10M/100M/1000M; WAN - 1 x RJ45 10M/100M/1000M
MIMO 2*2 MU-MIMO
Led Power Indicator LED; VSIM Indicator; LTE Indicator;2.4GHz Wi-Fi;
5.8GHz Wi-Fi; SIM Indicator; Signal LED (3 LED); WAN/LAN LED
Temperature Working: 0°C40°C; Storage: -30°C 70°C
Shell Material Metal
Dimensions 180*130*30mm
Weight < 1500 g (including packaging)

Software:

Configuration Handover between Physical SIM and MCS
Local WEB GUI Manage the CPE device
Debug Mode RSSI level; Packet error rate; CINR; Dynamic Tx power; Modulation
Encryption/Decryption AES; SNOW3G; NULL
Power Control DL Power Control; UL Power Control
Admin management Admin setting change; Device reboot, reset; Gateway setting
Device Info Device model LTE module ID version SN; Vendor
info SIM carrierï¼›connection statusï¼›Device timeï¼›IP addressï¼›connection time
Software update Sending and receiving messages; Language setting
TDD Bands FOTA and local update
FDD Bands B34/B38/B39/B40/B41
WCDMA Bands B1/B2/B3/B4/B5/B7/B8/B12/ B13/B17/B18/B19/B20/B25/ B26/B28/B29/B30/B66/B71 B1/B2/B4/B5/B8

Quick Guide (pdf)
