Product Overview

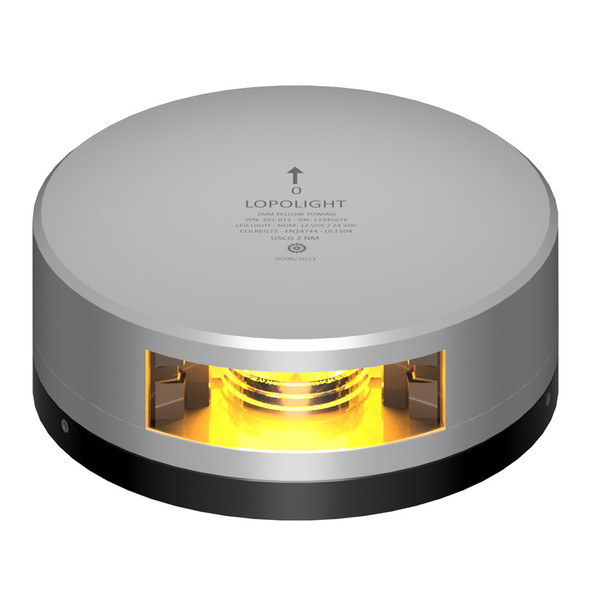

Yellow Towing Light - 2NM - Silver Housing with FB Base
This yellow towing light has a silver housing, is designed to be horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized aluminum housing
- 2.5m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438043459
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Yellow
- Visibility: 2NM
- Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: 2.5m cable
- Current Consumption (mA @ 24VDC): 71
- Current Consumption (mA @ 12VDC): 124
- Dimensions Metric: Ø92.5mm x 36mm
- Dimensions Imperial: Ø3.6" x 1.4"
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 1.7
- Vessel Size: 20-50 meters
Specifications:
- Housing: Silver
- Visible Range (Miles): 2NM
- Voltage - Input Range (Volts): 10 - 32
- Box Dimensions: 4"H x 4"W x 4"L WT: 1.4 lbs
- UPC: 879343043582
Quick Guide (pdf)
