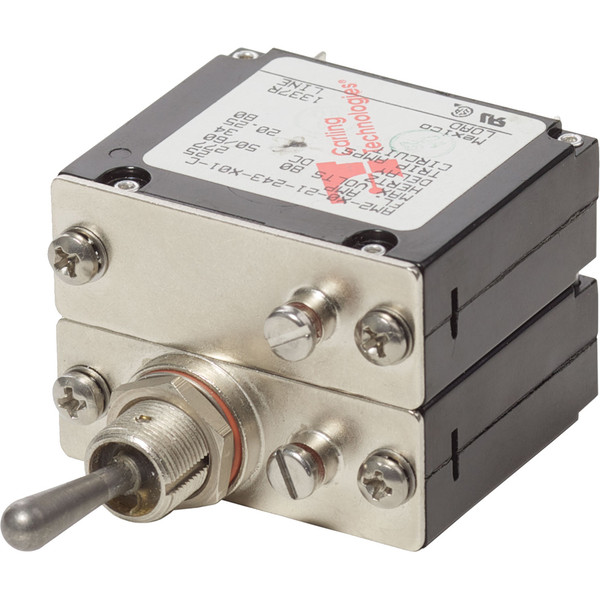

Blue Sea 7314 COTS Military Grade A-Series 25 Amp [7314]

7314 COTS Military Grade A-Series 25 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

• Amperage: 25A
• Actuator Style: Metal Toggle
• Poles: 2
• Max Voltage: 277V AC, 65V DC
• Circuit Breaker Type: Magnetic Hydraulic - Trip Free
• Interrupt Capacity: 1500 A AC, 7500A DC
• Min Operating Temp: -40°C
• Max Operating Temp: 85°C
• Mounting Boss: 1/2-32 Hex Nut SS
• Mounting Nut Torque: 30"-lb
• Screw Terminal Torque: 14"-lb
• Switching Cycles: 6000 Electrical/4000 Mechanical
• Terminal Screw: #10-32 SS
• Weight: 0.13lb (0.06 kg)
• UL 1077

Specifications:

• Amperage: 25a
• Box Dimensions: 2"H x 3"W x 4"L WT: 0.4 lbs
• UPC: 632085073145
